Desk Top Type　Automatic Drill Sharpener Xin| BIC TOOL for GEKKOU DRILL

FLAT DRILL Compatible Model
Desk Top Type　Automatic Drill Sharpener
Xin

DRILL SHARPENER

Highly Functional, Versatile, and Cost-Effective Drill Sharpener.

01. World's first FLAT DRILL compatible, Desk-top Automatic Drill Sharpener.
02. Fully automated to ensure uniform sharpening quality for everyone.
03. The touch panel allows intuitive operation.

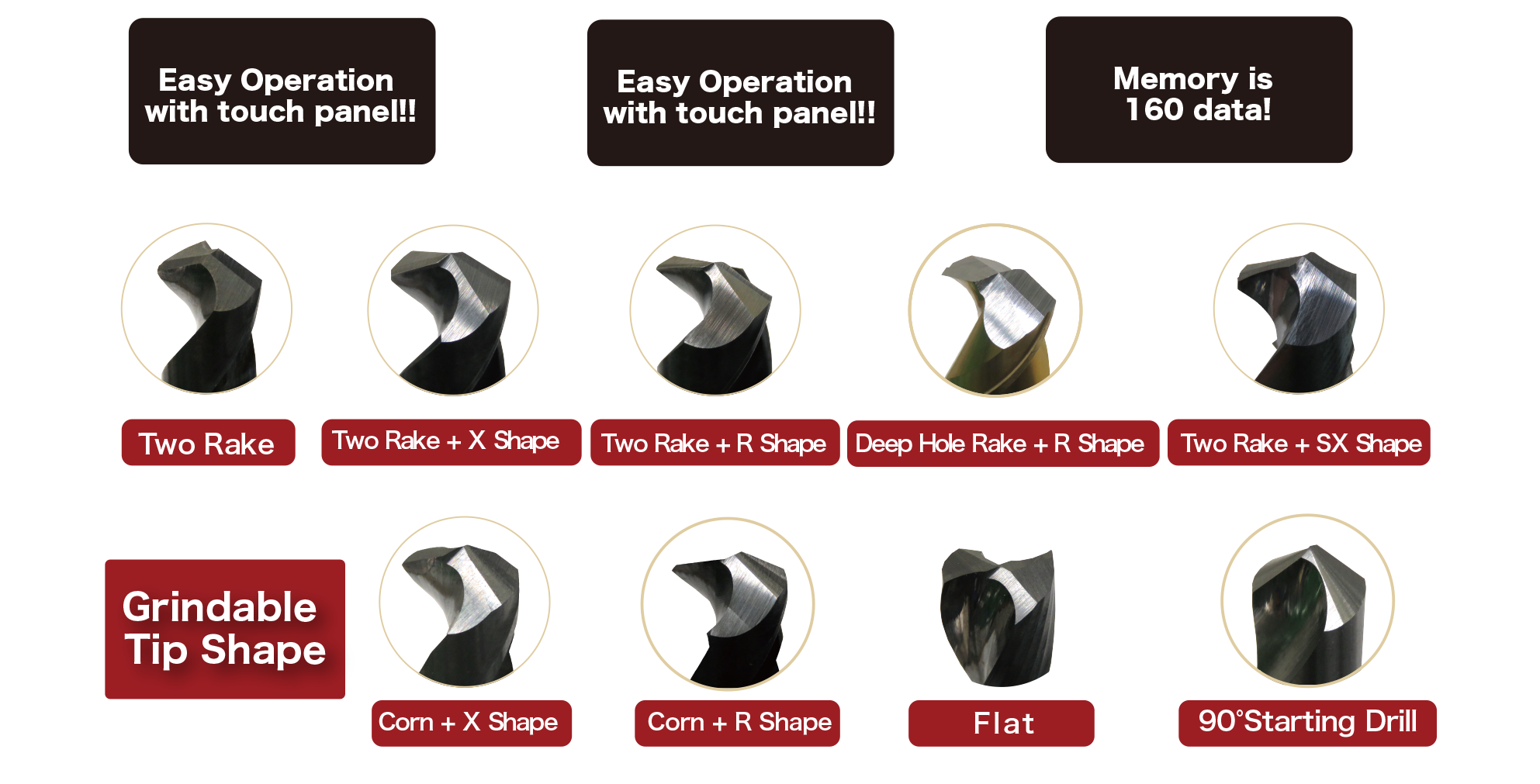

04. Easy to operate and compatible with a wide variety of tip shapes.
05. Setting change is easy with illustration.
06. Data Memory is 160! Max memory than ever series.
07. With naming function, data management is easy.
08. Maintenance is easy.
09. Equipped with LEDs, the built-in light allows the operator to check the work status.

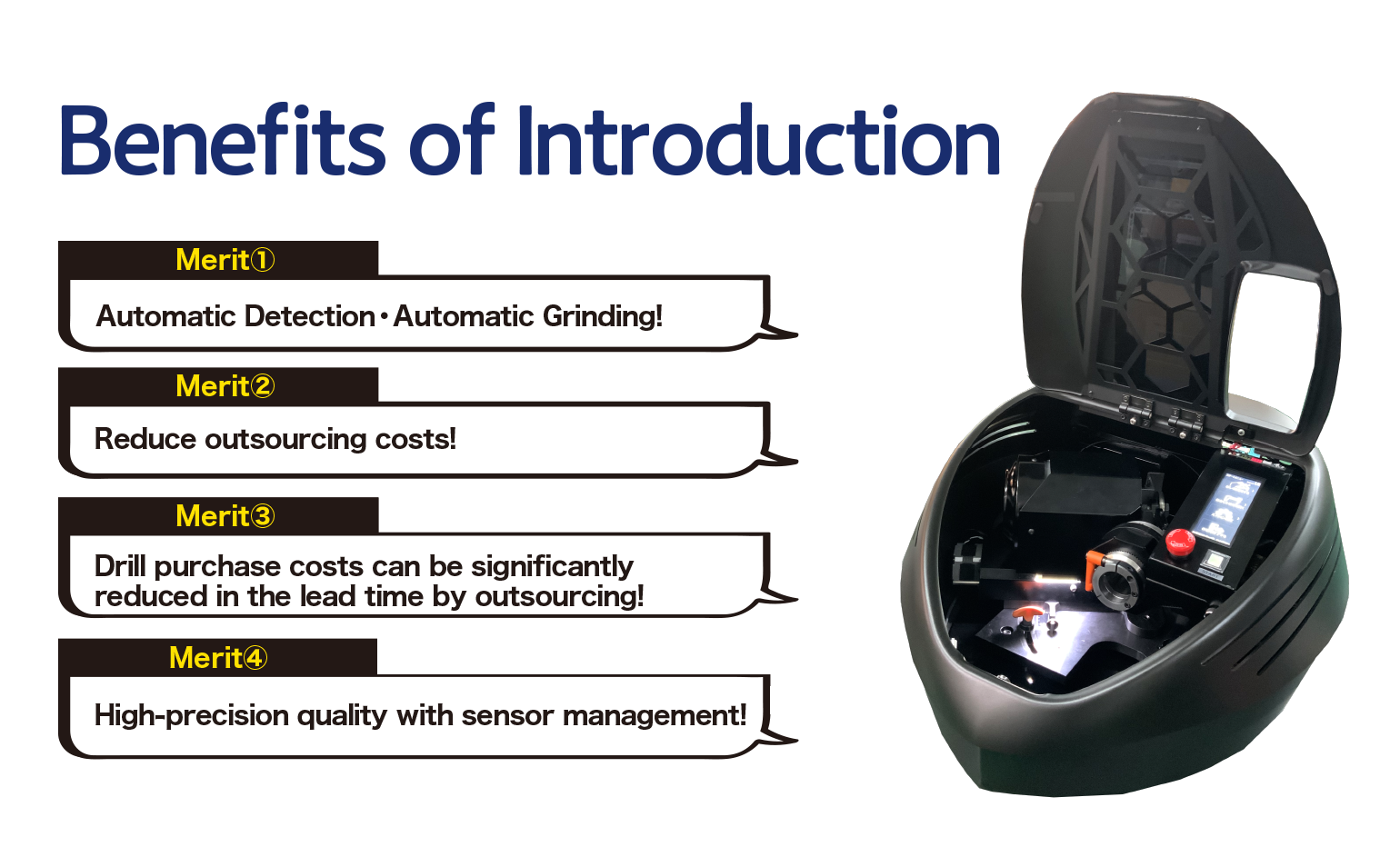

01. Stable accuracy reduces product defects.
02. It is possible to reduce the cost of outsourcing.
03. It is possible to reduce the number of drills to the minimum.
04. Drill purchase costs can be significantly reduced in the lead time for outsourcing costs.

Applicable Drill bit dia Straight Drill 2.0 - 13.0 mm Pivot Drill 2.0 - 13.0mm (E/M Shank) Starting Drill 3.0 - 12.0mm Flat Drill 3.0 - 20.0 mm （Custom Order φ2.0　～）	Web tickness adjustment range 0％～50％
Permit of a maximum overall drill bit length 200mm（MAX）	Collet ER11:Collet 9 pcs (φ2.0-6.0 every 0.5mm 1pc each) ER32:Collet 14 pcs (φ7.0-20.0 every 1.0 mm 1pc each)
Point (Tip) angle 90°・118°～140・180°	Grinding Wheel CBN#170/CBN#270/DIA#170/DIA#270
Memory Function 160 patterns	Power Supply AC100V 50/60Hz（Option 120/230V）
Thinning Form X・R Thinning	Overall Dimensions (W)540×(D)640×(H)340
Grinding Form Cone, Holizontal	Net 45kg
2nd relief angle adjustment range 1°～15°	Powe Consumption 300W
3rd relief angle adjustment range 10°～35°
Thinning Adjustment X・R Width: -0.3～+0.3mm Depth: -0.3～+0.3mm Angle: 110～145° R Radius magnification: 30～150% Position: 0～80%
