AUTOMATIC GRINDING MACHINE EZ-13 | BIC TOOL for GEKKOU DRILL

AUTOMATIC GRINDING MACHINE
EZ-13

DRILL SHARPENER

High performance with various function.
Cost effective drill grinding machine.

01. We ensure uniform polishing quality with automatic operation.
02. We made it possible to supply this automatic re-grinding machine at very competitive price.

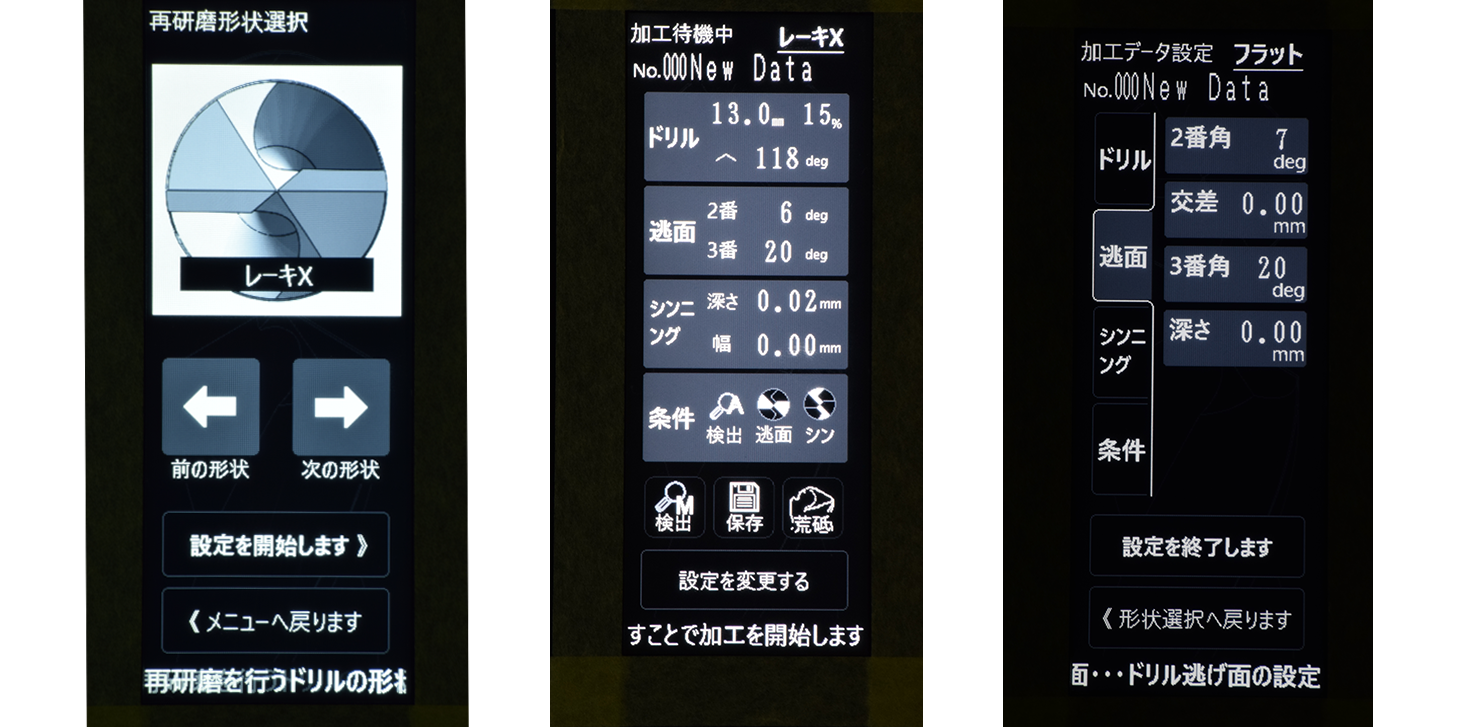

03. Easy and simple to operate with a touch panel.

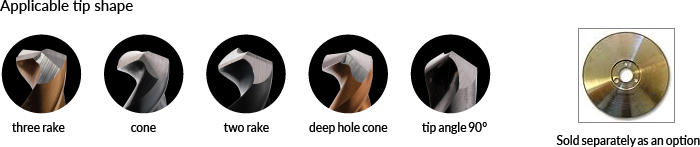

04. Adopted the various type of tip shapes.
05. Easy setting with illustration.
06. Memory Function 100 paterns! 5 times more than the previous model.
07. Equipped with a naming function for easy data management.
08. Easy to remove the cover with just one touch and easy to do the maintenance.
09. Equipped with X・R Thinning ! Fine adjustment of R thinning is also possible.

01. Since the accuracy is stable, it is possible to prevent product defects.
02. It is possible to save the outsourcing cost.
03. It is possible to minimize the control of the drill bits.
04. You can significantly reduce the cost of purchasing a drill at the lead time of outsourcing costs.

Applicable Drill bit dia φ2.5～φ13 （Custom Order φ2.0　～）	Web tickness adjustment range 10％～50％
Permit of a maximum overall drill bit length 200mm（MAX）	Collet ER11・20 standard
Point (Tip) angle 118°～140・90°	Grinding Wheel CBN#170
Memory Function 100 patterns	Power Supply AC100V 50/60Hz（Option 120/220V）
Thinning Form X・R Thinning	Overall Dimensions W600×D620×H360
Grinding Form Cone, Holizontal	Net 65kg
2nd relief angle adjustment range 1°～15°	Powe Consumption 300W
3rd relief angle adjustment range 10°～35°
Thinning Adjustment X・R Width: -0.5～+0.5mm Depth: -0.5～+0.5mm Angle: 110～145° R Radius magnification: 30～150% Position: 0～80%
